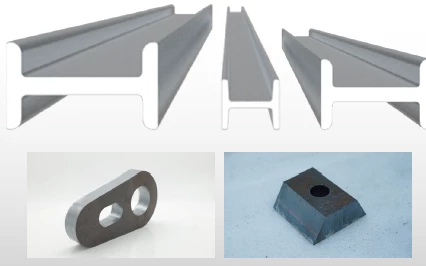

Three-in-one cutting mode:
Sheet Metal Cutting
Section Steel Cutting
Beveling Processing

Equipped with multiple cutting modes, PR1500B Series can fully meet the demands of corresponding straight cutting and beveling processing for sheet and section steels.

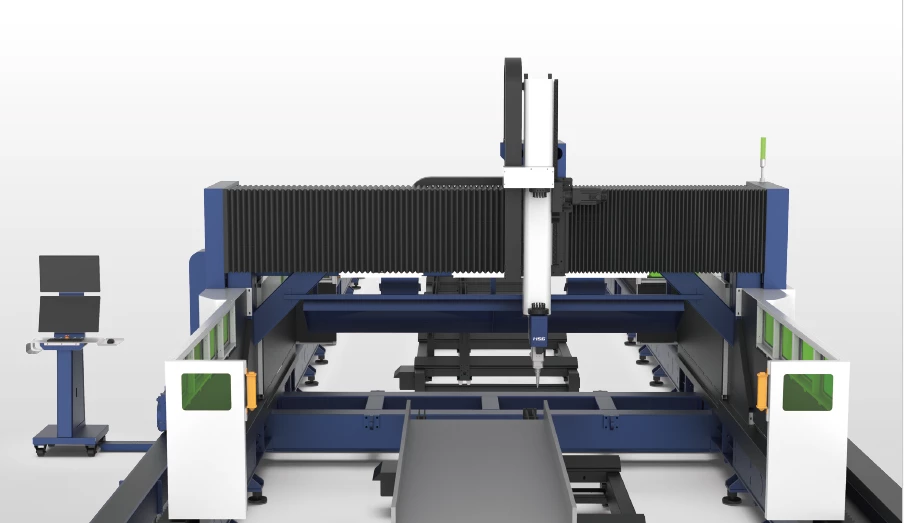

Multiple Safety Protection

There are protective sheet metal on both sides of the beam, effectively blocking the splashing of cutting sparks. Equipped with anti-burning plates, PR1500B Series can offer heat protection without heat damage worry. The safety protection glass on both sides allows for real-time observation of cutting conditions while providing protection.

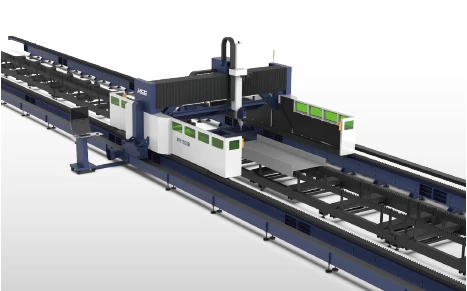

HSG laser cutting Machines

Extra large-format requirements

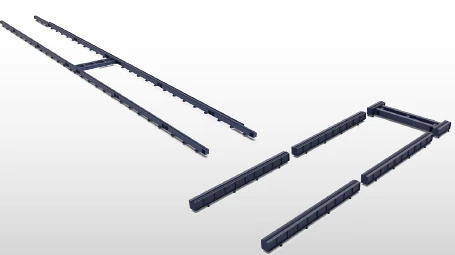

Adopting independent modular design, single station (14m) and double station (28m) can be selected to meet the cutting Extra Large-format Design of different metal material combinations. The extra wide machine bed allows to be used for the beveling processing of 2.5m wide sheet metal.

One-Stop Specialized Solutions For Section Steel Cutting

Real-time measurement and compensation of section steel workpieces and drawings will be done through coarse positioning + fine positioning. The nesting software for the PR1500B series has strong compatibility with Tekla,users can enjoy intelligent control system through simple operations.

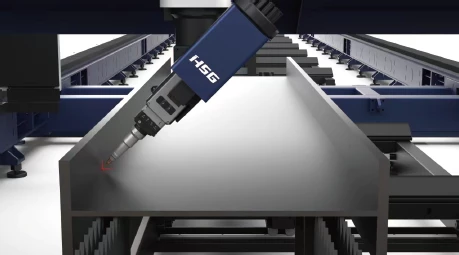

HSG laser bus-based laser cutting heads
HSG laser cutting Machines process various types of bevels

High-efficient Cutting Processing

The new generation of lightweight beam design, a maximum linkage speed up to 80m/min, has higher processing efficiency compared to conventional formats.

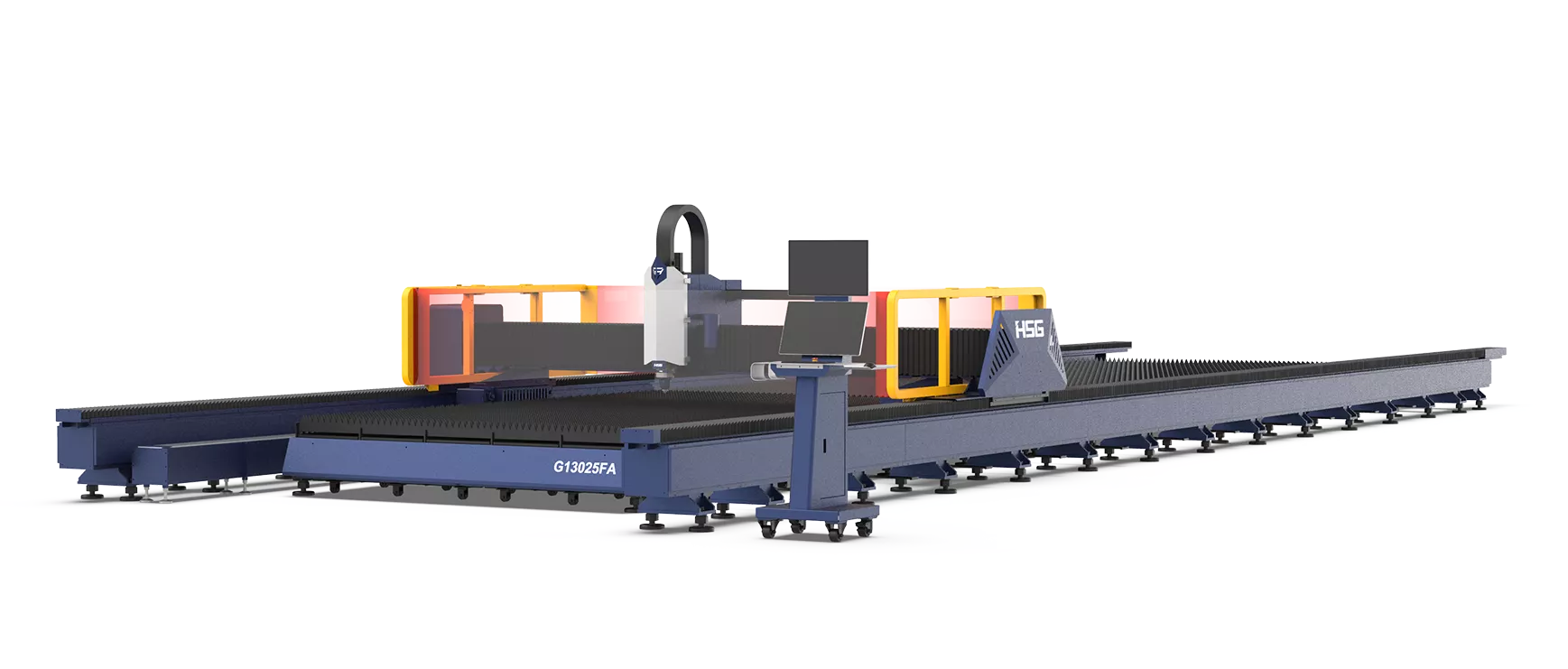

Available: Bevel-GFA

GFA

Technical Parameters

  • Model
  • Power
  • Processing format (L*W)
  • X/Y-axis positioning accuracy
  • G12025FA
  • 12000W-60000W
  • 12100*2500mm
  • ±0.05mm/m
  • G12035FA
  • 12000W-60000W
  • 12100*3500mm
  • ±0.05mm/m
