HSG laser cutting machine
800-952-2487
TX Plus
HSG laser cutting Machines double-chucks with upgraded processing ability

Double-chucks with Upgraded Processing Ability

Longer: achieve 12000mm
Heavier: achieve 1000Kg
口Rectangle/ΦRound Tube Clamping Range: 20-360mm

Heavy-duty Side Lateral Machines Bed

More convenient for loading materials.
The gravity centre of chucks is lower and more static.

HSG laser heavy-duty side lateral Machines bed
HSG laser cutting Machines whole-track rectangular-circle chucks

Whole-track Rectangular-circle Chucks

More convenient for loading, without processing pause.
Achieve types diameters of single rectangular/round/I-beam/H-beam...

Fully-sealing and Professional Chucks

Avoid dust to enhance chucks’ working life.

HSG laser cutting Machines fully-sealing and professional chucks
HSG laser cutting Machines bus control system

HSG-X
Bus Control System

Massive technology database
Automatic nesting and report generation
Real-time display of track

TX Plus

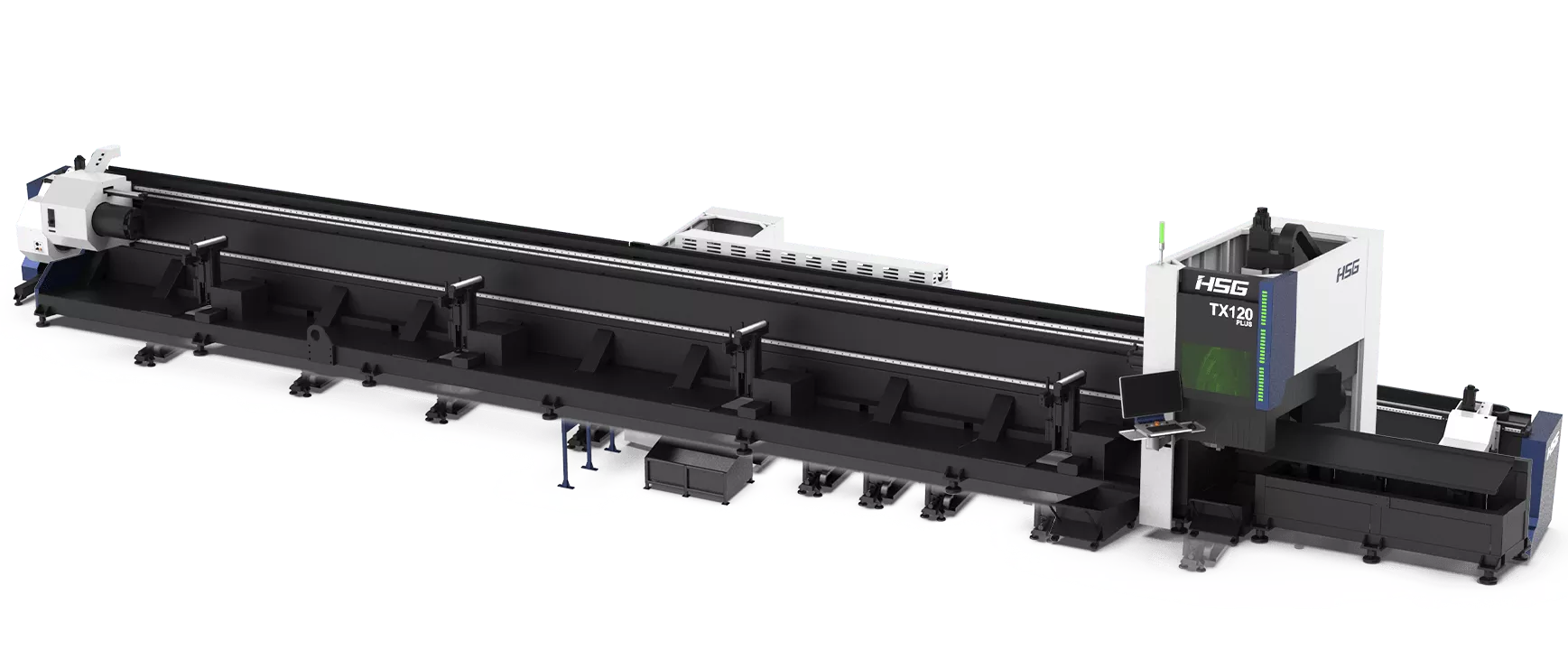

HSG Double-chucks Tube Fiber Laser Cutting Machine

Technical Parameters

  • Model
  • Power
  • X/Y-axis Positioning Accuracy
  • Cutting Capacity of Round Tube
  • Cutting Capacity of Square Tube
  • Weight of Single Tube
  • TX65 Plus
  • 3000W-12000W
  • ±0.05mm/m
  • Φ20-Φ360mm
  • □20*20-□360*360mm
  • 1000kg
  • TX90 Plus
  • 3000-12000W
  • ±0.05mm/m
  • Φ20-Φ360mm
  • □20*20-□360*360mm
  • 1000kg
  • TX120 Plus
  • 3000W-12000W
  • ±0.05mm/m
  • Φ20-Φ360mm
  • □20*20-□360*360mm
  • 1000kg
