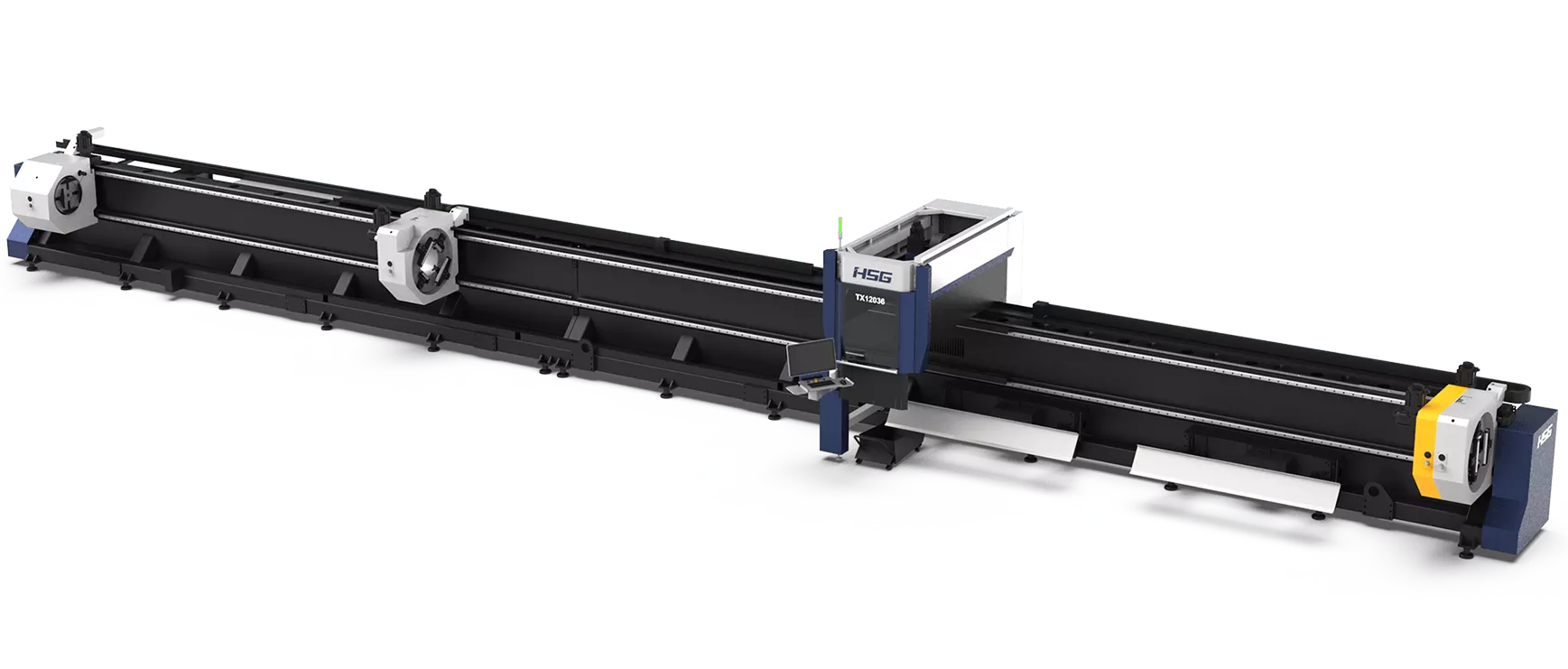

TX
3+1 Twin-chucks Clamping
The chucks are
developed by HSG Laser and have got Chinese patent for invention. They not only
address prevailing problems faced by two, three and other four chucks, but also
offer global users heavy tube cutting solutions beyond expectation.
* Combine C3 and C4 chuck together with synchronous rotation and moving
* Have functions of tube clamping, supporting and correction
* Move at full stroke
Patent Number: ZL2021 1 088723.1
Lateral Hanging Machines Bed
The Machines bed is made of several sections and spliced together, therefore, long tube is also easily processed. Due to co-axial treatment, the Machines can make sure of its running precision. Notes: It is suitable for TX9036, TX12036 and TX12050.
Shaped Last Cut Technique
When work procedures are well arranged, zero tailing comes ture to save material purchasing costs.
Follow-up Supporting Plate as Unloading Device
Follow-up supporting plate and concave wheel are used for unloading ≤6000mm long tube. The plate provides support to dropping tubes to avoid scratch.
Dust Removal
There are air hoses on the front chuck and high-power exhaust fans that work together to cut down smoke pollution and keep operators healthy.
