TPSD

Efficient Production: Cutting + Drilling + Tapping

Integrated laser cutting, hot melt drilling and tapping, for molding at once to reduce processing processes, save labor, greatly shorten processing time and improve production efficiency

SPEED+ High-speed Tube Cutting Technology

Using SPEED+ high-speed cutting technology to improve the cutting efficiency of dense small graphics for high-speed tube cutting.

* Note: Chuck Rotation Speed: 120r/min
* Chuck Linkage Speed: 120m/min

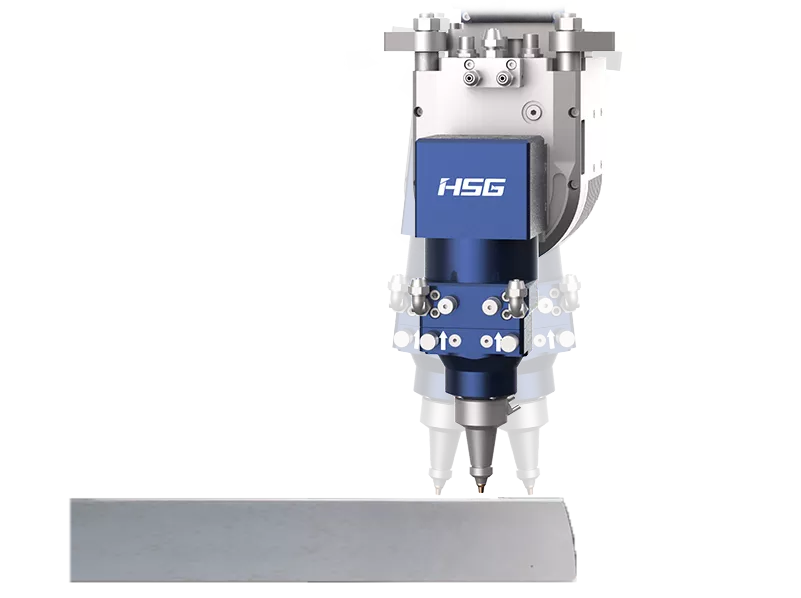

HSG laser high-speed tube cutting technology

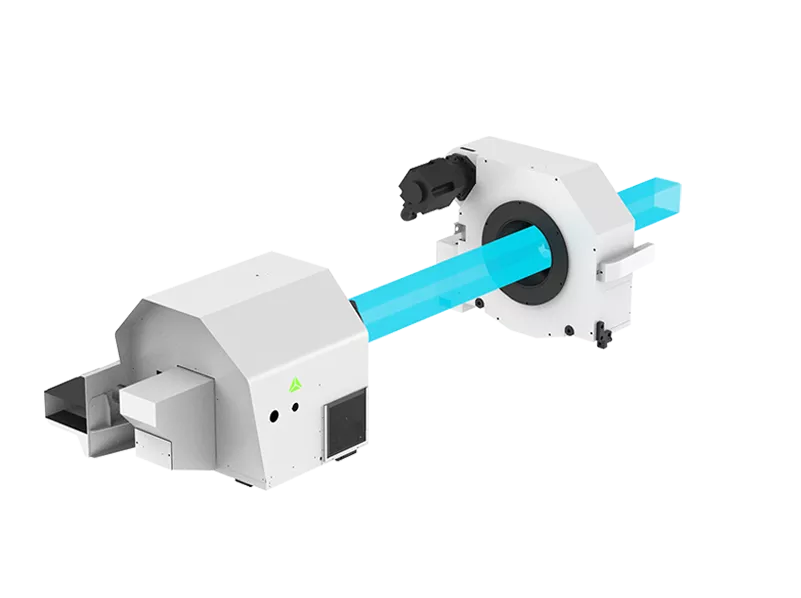

HSG laser cutting Machines intelligent digital chuck

Intelligent Digital Chuck

The chuck can detect the clamping status and the tube size data to achieve self-adjustment of clamping force.

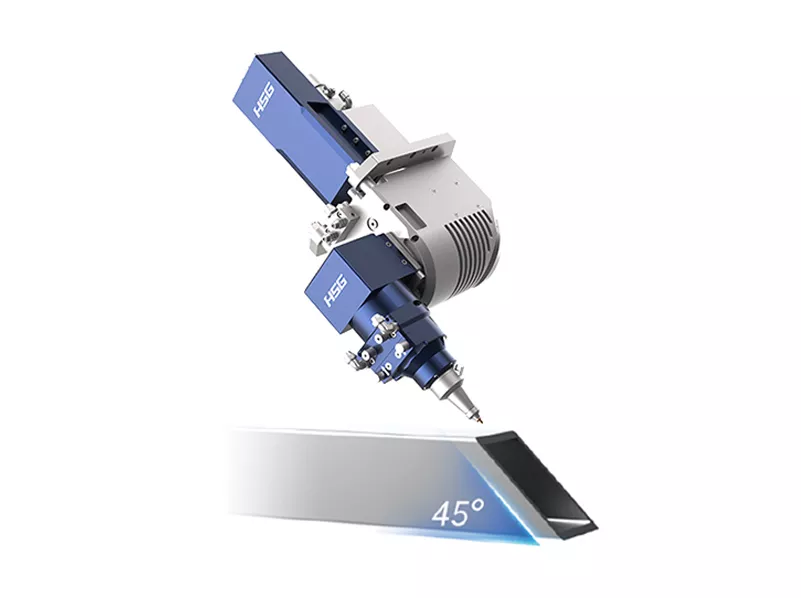

Beveling Processing

HSG-LA4 tube beveling tube cutting head to achieve 0-45°beveling cutting.

HSG laser cutting Machines beveling processing

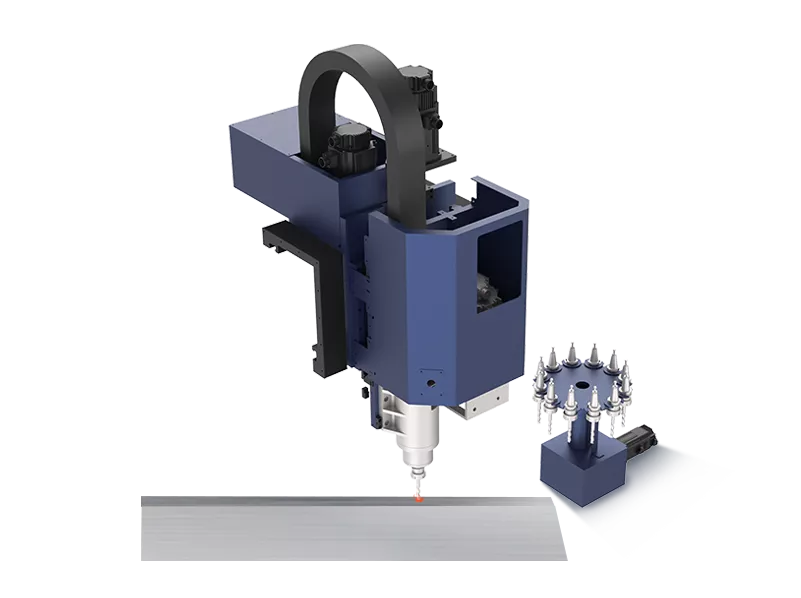

HSG laser cutting Machines multiple apertures hot melting -drilling-tapping technique

Multiple Apertures Hot Melting -Drilling-Tapping Technique

Self-equipped with tool database to achieve automatic knife shifting.

TPSD

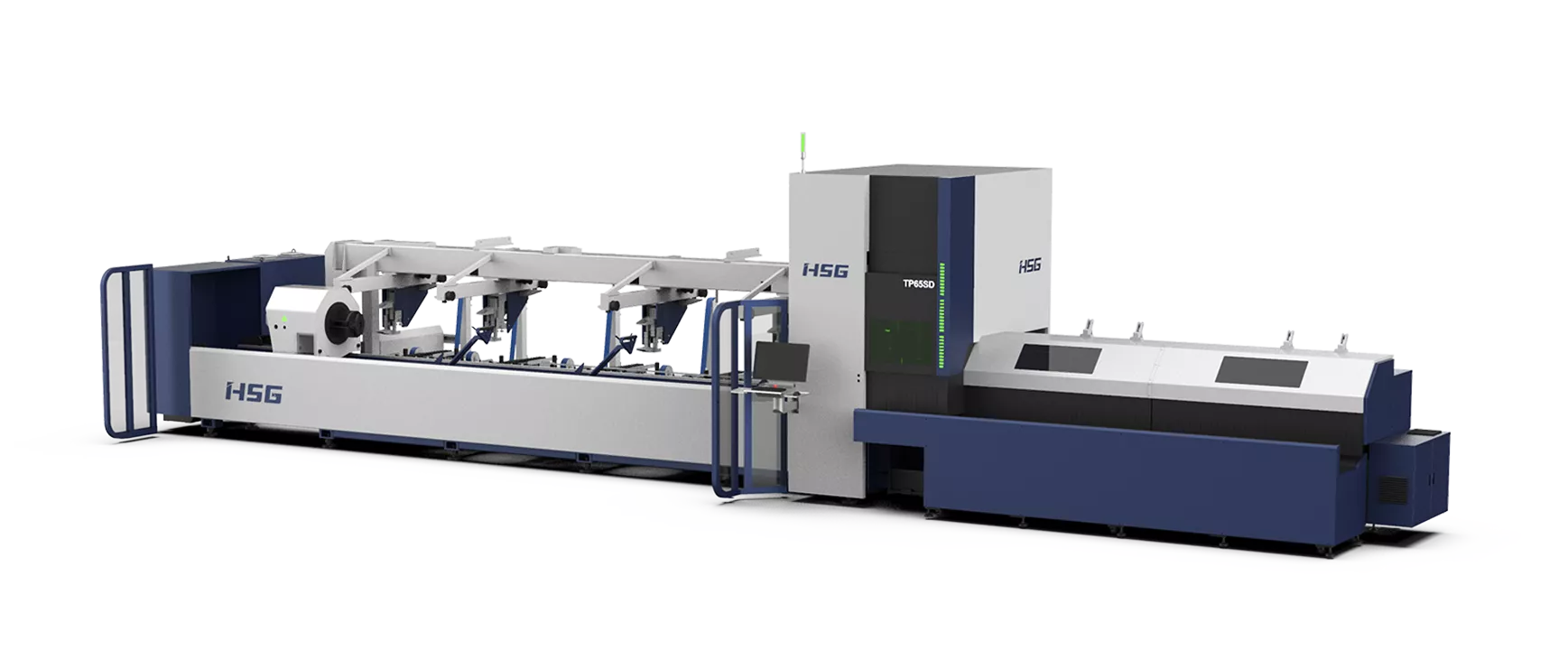

HSG Flagship Series Compound Tube Fiber Laser Cutting Machines With Drilling and Tapping

Technical Parameters

  • Model
  • Power
  • X/Y-axis Positioning Accuracy
  • Cutting Capacity of Round Tube
  • Cutting Capacity of Square Tube
  • Weight of Single Tube
  • TL65SD
  • 3000W-6000W
  • ±0.03mm/m
  • Φ20-Φ273mm
  • □20*20-□200*200mm
  • 200kg
